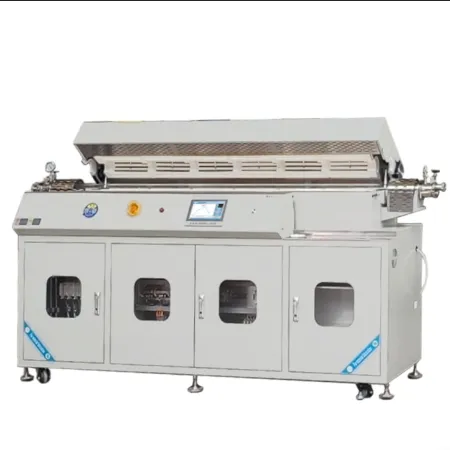

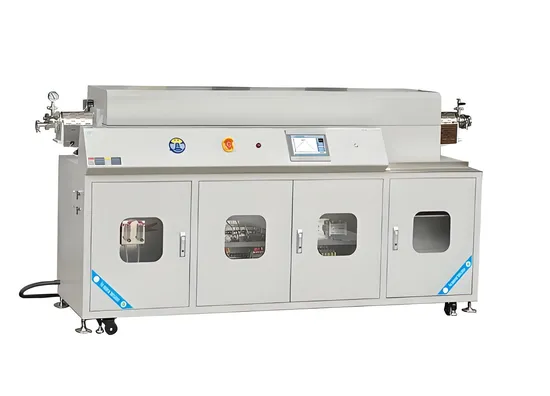

A precision heating system with six independent zones for complex thermal gradients in material research and industrial applications.
Features six independent heating zones with dedicated PID controllers for precise, customized temperature profiles (±1°C accuracy).
Achieves rapid heating rates (≤10°C/min) up to a maximum temperature of 1200°C with long-term stability.
Supports vacuum, inert gas (N2, Ar), and reducing atmospheres (H2) with a six-channel gas flow system.
Integrates a 7-inch touchscreen for smart control, featuring 15 programmable curves and remote data export.
Built with over-temperature protection and auto-maintenance reminders to ensure operational safety and reliability.
Ideal for advanced applications such as gradient sintering, Chemical Vapor Deposition (CVD), annealing, and crystal growth.
Model: RJ-O1200-80T66F
Max Temperature: 1200°C
Temperature Accuracy: ±1°C
Heating Rate: ≤10°C/min
Heating Zones: 6 zones (Φ150×300mm each)
Furnace Tube Material: Quartz, Φ80×2800×5mm
