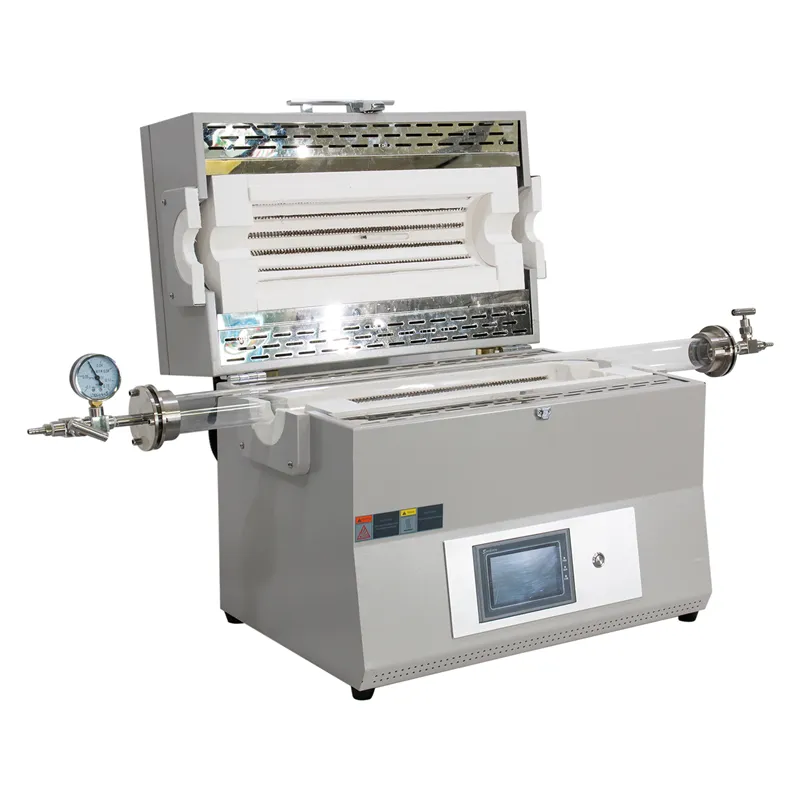

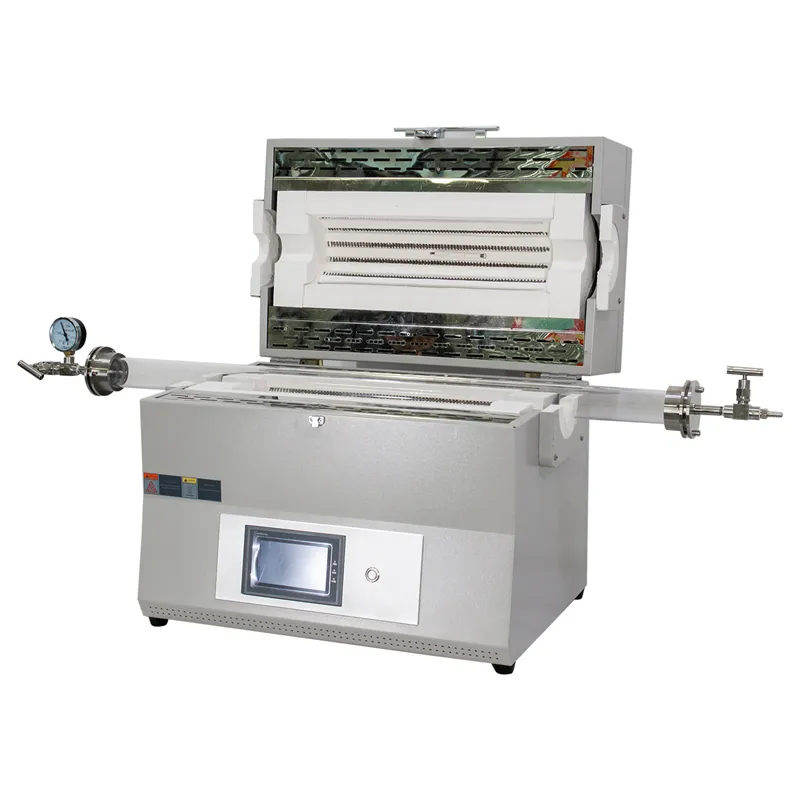

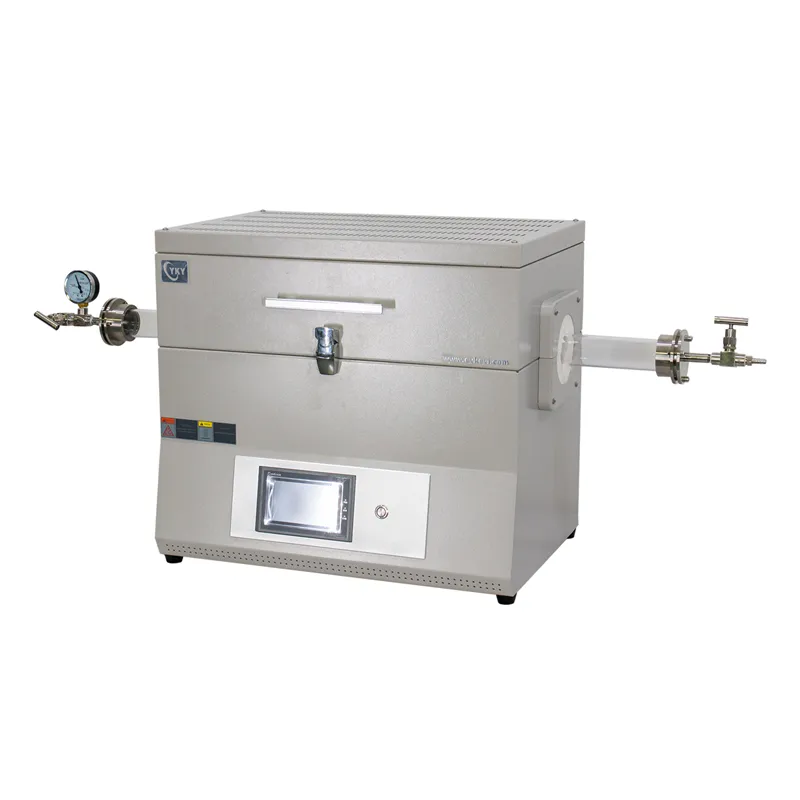

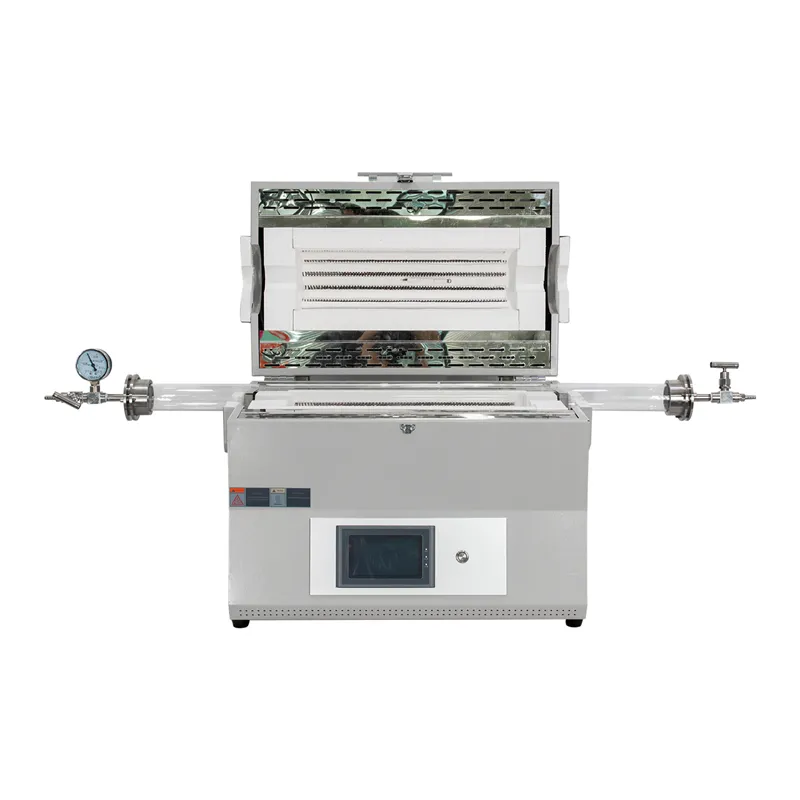

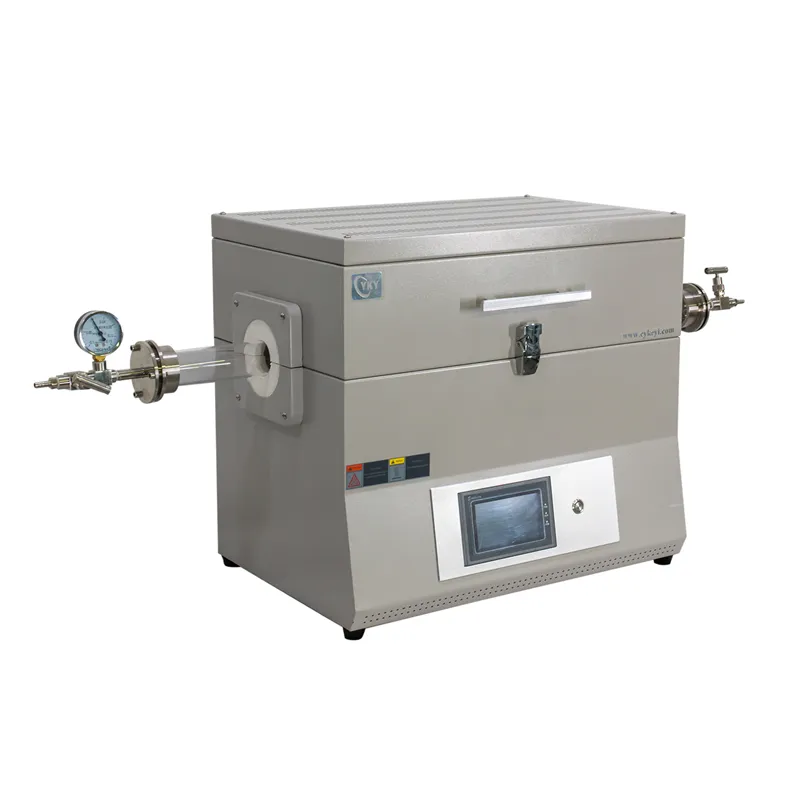

Versatile 1200°C laboratory tube furnace featuring a high-purity quartz tube and 50-segment programmable control, suitable for diverse research and material processing applications.
Achieves maximum heating temperatures up to 1200°C (recommended continuous operation ≤ 1100°C).
Features a standard high-purity quartz tube (50mm OD) for excellent thermal shock resistance.
Advanced 50-segment programmable PID temperature controller ensures precise thermal profiles (±1°C accuracy).
Intuitive operation via a high-definition LCD touch screen interface.
Equipped with stainless steel vacuum flanges for controlled atmosphere or vacuum processing.
Includes over-temperature and thermocouple break protection for safe operation.
Ideal base furnace for laboratory heat treatment, material synthesis, annealing, and CVD experimentation.
Maximum Temperature: 1200°C
Continuous Operating Temperature: ≤ 1100°C
Tube Material: High Purity Quartz
Standard Tube Dimensions: 50mm OD x 1000mm L
Heating Zone Length: 400mm (Constant Zone ~200mm)
Temperature Control: 50-Segment Programmable PID (±1°C Accuracy)
